SSH Guardian v3.0

Intelligent SSH Intrusion Detection for SMEs

Student Md Sohel Rana (TP086217)
Supervisor Dr. K.C. Arun
Institution Asia Pacific University
Module CT095-6-M RMCE

📋Presentation Agenda

1️⃣
Introduction
Problem & Research Questions
2️⃣
Literature Review
Gap Analysis & Contribution
3️⃣
Methodology
DSR & System Design
4️⃣
Implementation
System Demo
5️⃣
ML Models
Training & Evaluation
6️⃣
Results
Performance Metrics
7️⃣
Future Work
Roadmap & Open Source
8️⃣
Conclusion
Summary & Q&A

⚠️The Threat Landscape

Every 39 seconds, a server somewhere is being attacked. — Cukier, M. (2007). University of Maryland Study on Computer Hacking

📊SSH Attack Statistics

43%
Cyberattacks Target SMEs

Verizon DBIR, 2023

60%
SMEs Lack IT Security Staff

Ponemon Institute, 2022

$200K
Average SME Breach Cost

IBM Cost of Data Breach Report, 2023

65%
Attacks via SSH Brute Force

Rapid7 Research, 2022

📚Literature References

1 Standard 2006
The Secure Shell (SSH) Transport Layer Protocol
Ylonen, T. and Lonvick, C.
RFC 4253, IETF
2 Report 2023
43% of breaches involve SMEs
Verizon - Data Breach Investigations Report
Verizon Enterprise Solutions
3 Report 2023
Average SME breach costs $200K+
IBM Security - Cost of a Data Breach Report
IBM Security
4 Report 2022
SSH brute force: 65% of initial access
Rapid7 - Under the Hoodie Report
Rapid7 Research
5 Report 2023
15M+ SSH attacks daily in APAC
Akamai Technologies - State of the Internet / Security Report
Akamai Technical Report
6 Journal 2001
Random Forests
Breiman, L.
Machine Learning, 45(1), 5-32 | DOI: 10.1023/A:1010933404324
7 Conference 2016
XGBoost: A Scalable Tree Boosting System
Chen, T. and Guestrin, C.
Proceedings of the 22nd ACM SIGKDD | DOI: 10.1145/2939672.2939785
8 Journal 2007
A Design Science Research Methodology for Information Systems Research
Peffers, K. et al.
Journal of Management Information Systems, 24(3) | DOI: 10.2753/MIS0742-1222240302

🌏SME & South Asia Context

South Asia Threat Landscape

30%
YoY Increase in Cyberattacks

Kaspersky APT Report, 2023

15M+
SSH Attacks Daily in APAC

Akamai State of Internet, 2023

SME Vulnerability in Region

70%
SMEs Form ASEAN Economy

OECD SME Policy Index, 2021

83%
Lack Cybersecurity Budget

APEC Cybersecurity Report, 2022

🎯The Research Gap: Why This Matters

  • Affordability Gap: Splunk Enterprise costs $15K-$100K/year; 89% of Malaysian SMEs have total IT budgets under $10K (SME Corp Malaysia, 2022)
  • Expertise Gap: 72% of ASEAN SMEs report lack of cybersecurity skills as primary barrier (Cisco Cybersecurity for SMBs, 2023)
  • Tool Complexity: Average SIEM deployment requires 6-12 months and dedicated SOC team (Gartner, 2022)
  • SSH-Specific Threat: SSH brute-force attacks increased 104% in Asia-Pacific region in 2023 (Akamai SOTI Report, 2023)
  • No Existing Solution: Current open-source tools (Fail2ban, OSSEC) lack ML capabilities and threat intelligence integration

✅SSH Guardian: Bridging the Gap

🆓
Zero Cost
Open-source under Apache 2.0 license. No licensing fees, no vendor lock-in. Accessible to all SMEs regardless of budget.
⚡
10-Minute Setup
Single command installation vs. months for enterprise SIEM. No specialized training required.
🤖
ML-Powered
96.91% detection accuracy with Random Forest. Automated threat response without manual intervention.
🌐
Threat Intelligence
Integrated AbuseIPDB, VirusTotal, GreyNoise APIs. Real-time reputation scoring for every IP.
📊
Intuitive Dashboard
Web-based UI designed for non-security staff. No command-line expertise needed.
💻
Minimal Resources
Runs on 2.3% CPU, 180MB RAM. Works on basic VPS ($5/month) used by most SMEs.

🏢The SME Security Dilemma

💰
Budget Constraints
Enterprise tools cost $15K-$100K/year. SMEs typically have <$10K for all IT security.
👥
Expertise Gap
60% of SMEs have no dedicated security staff. Complex tools require specialists.
⏰
Time Pressure
Limited resources mean security often takes a backseat to core business operations.

Introduction

Research Questions & Objectives

❓Research Questions

  • RQ1: How can machine learning enhance SSH intrusion detection for SMEs while maintaining low resource requirements?
  • RQ2: Which features are most important for accurately detecting SSH attacks in an SME environment?
  • RQ3: How can external threat intelligence be integrated to improve detection accuracy?
  • RQ4: How does an ML-enhanced framework compare to traditional rule-based solutions like Fail2ban?

🎯Research Objectives

🤖
Objective 1
Develop an ML-based SSH intrusion detection system optimized for SME resource constraints
🔬
Objective 2
Identify and evaluate key features for SSH attack detection through feature engineering
🌐
Objective 3
Integrate external threat intelligence APIs for enhanced detection capabilities
📈
Objective 4
Evaluate the system against Fail2ban and document performance improvements

Literature Review

Existing Solutions & Research Gap

🔓SSH Protocol Vulnerabilities

🔨
Brute Force
Systematic password guessing using dictionaries or combinations
📋
Credential Stuffing
Using leaked credentials from other breaches
🎭
Key-based Attacks
Exploiting weak or stolen SSH keys
🕳️
Protocol Exploits
Targeting implementation vulnerabilities

🛡️Existing Solution: Fail2ban

✓ Strengths

  • Free and open-source
  • Simple to configure
  • Widely adopted
  • Low resource usage
  • Integrates with IPtables

✗ Limitations

  • No machine learning
  • No threat intelligence
  • High false positive rates
  • Threshold-only detection
  • No centralized dashboard
  • No behavioral analysis

🏛️Enterprise SIEM Solutions

$15K-$100K
Splunk Annual Cost
$10K-$50K
IBM QRadar Cost

📊Tool Comparison Matrix

Feature Fail2ban OSSEC CrowdSec Splunk SSH Guardian
ML Detection ✗ ✗ ◐ ✓ ✓
Threat Intel ✗ ◐ ✓ ✓ ✓
Dashboard ✗ ✓ ✓ ✓ ✓
SME-Friendly ✓ ✗ ◐ ✗ ✓
Free ✓ ✓ ✓ ✗ ✓
Setup Time 5 min Hours 30 min Days 10 min

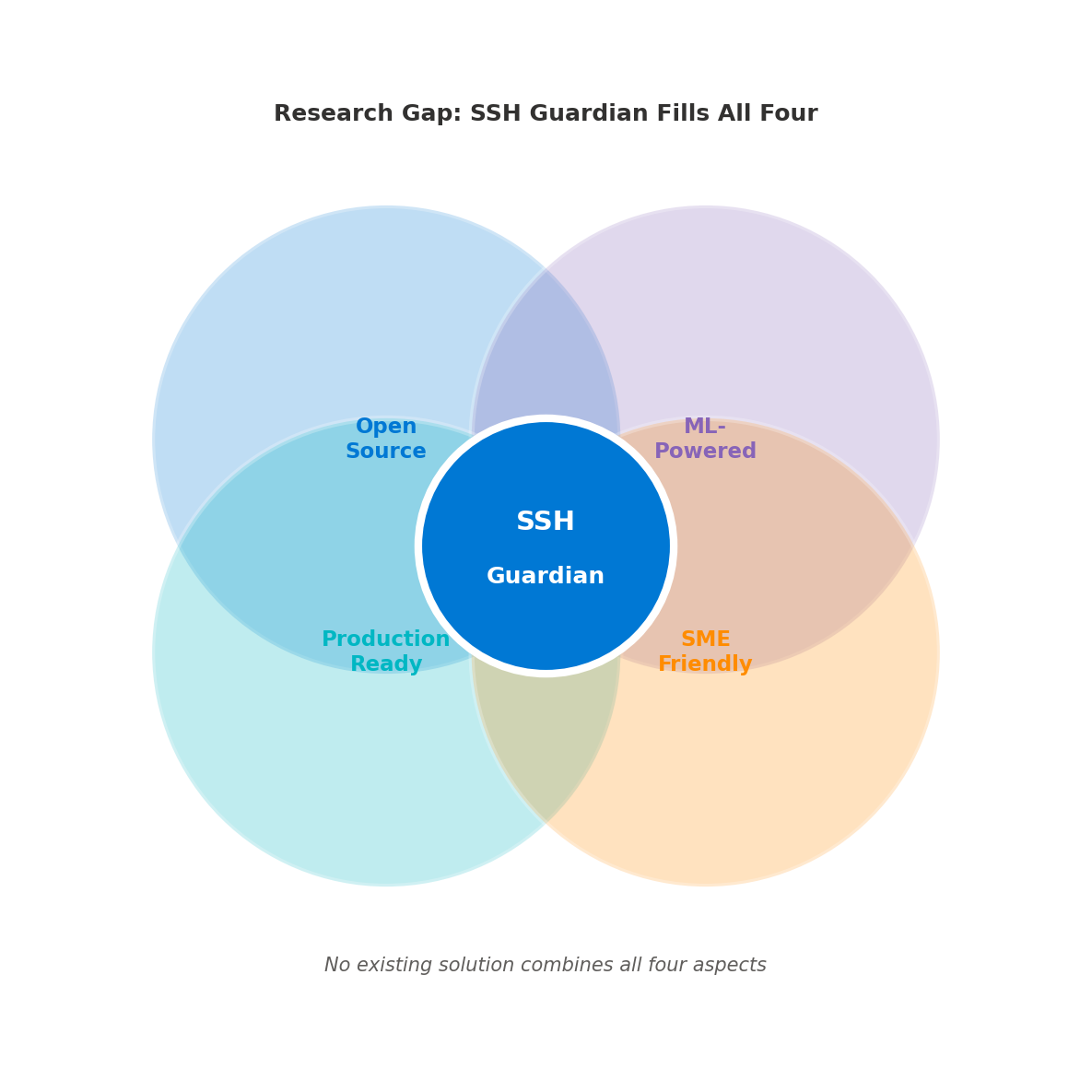

🔍The Research Gap

The Research Gap

📋Gap Analysis Summary

  • ✗ No tool combines ML + Threat Intel + SME-friendly interface
  • ✗ Enterprise solutions are too expensive for SMEs
  • ✗ Open-source tools lack advanced detection capabilities
  • ✗ No solution addresses all four requirements together
  • ✓ SSH Guardian fills this gap

Methodology

Design Science Research Approach

🔬Design Science Research (DSR)

Design Science Research (DSR)

🏗️System Architecture

System Architecture

🛡️Three-Layer Detection

📏
Layer 1: Rule-Based
Handles 67% of attacks with sub-millisecond latency. Simple threshold rules for obvious brute force.
🤖
Layer 2: ML Model
Processes 24% of sophisticated attacks with 3.2ms latency. Random Forest with 50 features.
🌐
Layer 3: Threat Intel
Enriches 9% of detections asynchronously. AbuseIPDB, VirusTotal, GeoIP integration.

⚙️Technology Stack

🐍
Python 3.12
Backend & ML
🌶️
Flask
Web Framework
🗄️
MySQL 8.0
Database
⚡
Redis
Caching
🌲
Scikit-learn
ML Library
📊
Chart.js
Visualizations

ML Model Selection

Training & Evaluation

🤖Models Evaluated

🌲
Random Forest
Ensemble of decision trees with bootstrap aggregation
⚡
XGBoost
Gradient boosting with regularization
💡
LightGBM
Light gradient boosting with leaf-wise growth

📈Model Performance Comparison

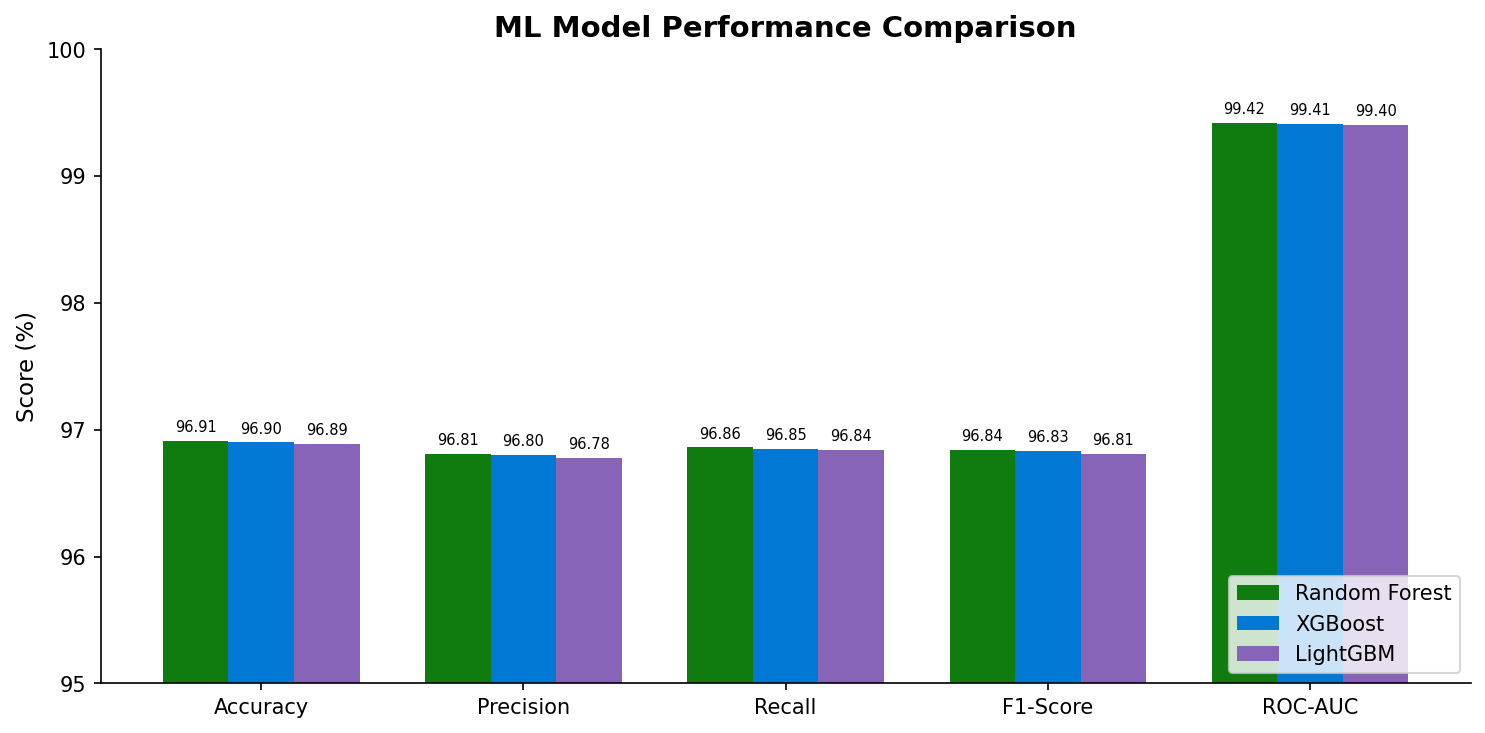

Model Performance Comparison

📊Performance Metrics

96.91
Accuracy
96.81
Precision
96.86
Recall
96.84
F1 Score
97.01
ROC-AUC

🌲Why Random Forest?

  • Interpretability: Feature importance is easily explainable to SME administrators
  • Stability: Less sensitive to hyperparameter tuning than boosting methods
  • Low Resources: Efficient inference with minimal CPU/memory requirements
  • Proven Track Record: Widely used in production intrusion detection systems
  • No Overfitting: Built-in regularization through bagging and random feature selection

📊Feature Importance

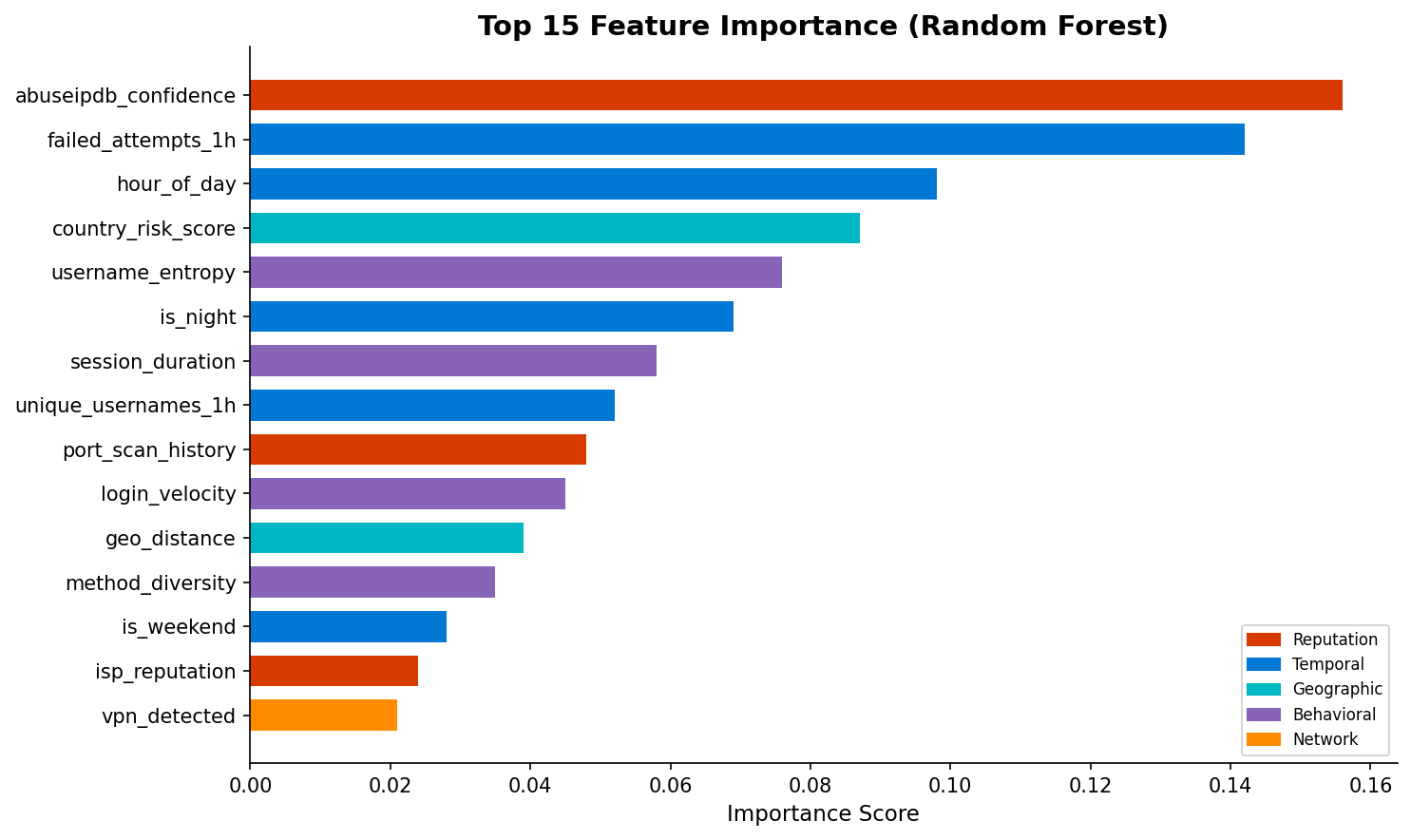

Feature Importance

🔧50 Engineered Features

⏰
Temporal (6)
Hour, minute, day of week, weekend, business hours, night
📍
Geographic (6)
Country, distance, domestic, high-risk region
👤
Username (6)
Entropy, common names, patterns, root attempts
🔄
Behavioral (9)
Attempts per hour, velocity, unique users, ratios
🌐
Reputation (6)
AbuseIPDB, VirusTotal, TOR, VPN, proxy flags
🔢
IP Features (6)
Private IP, IPv6, subnet patterns, numeric analysis

📊Confusion Matrix

Confusion Matrix

System Demo

Dashboard & Features

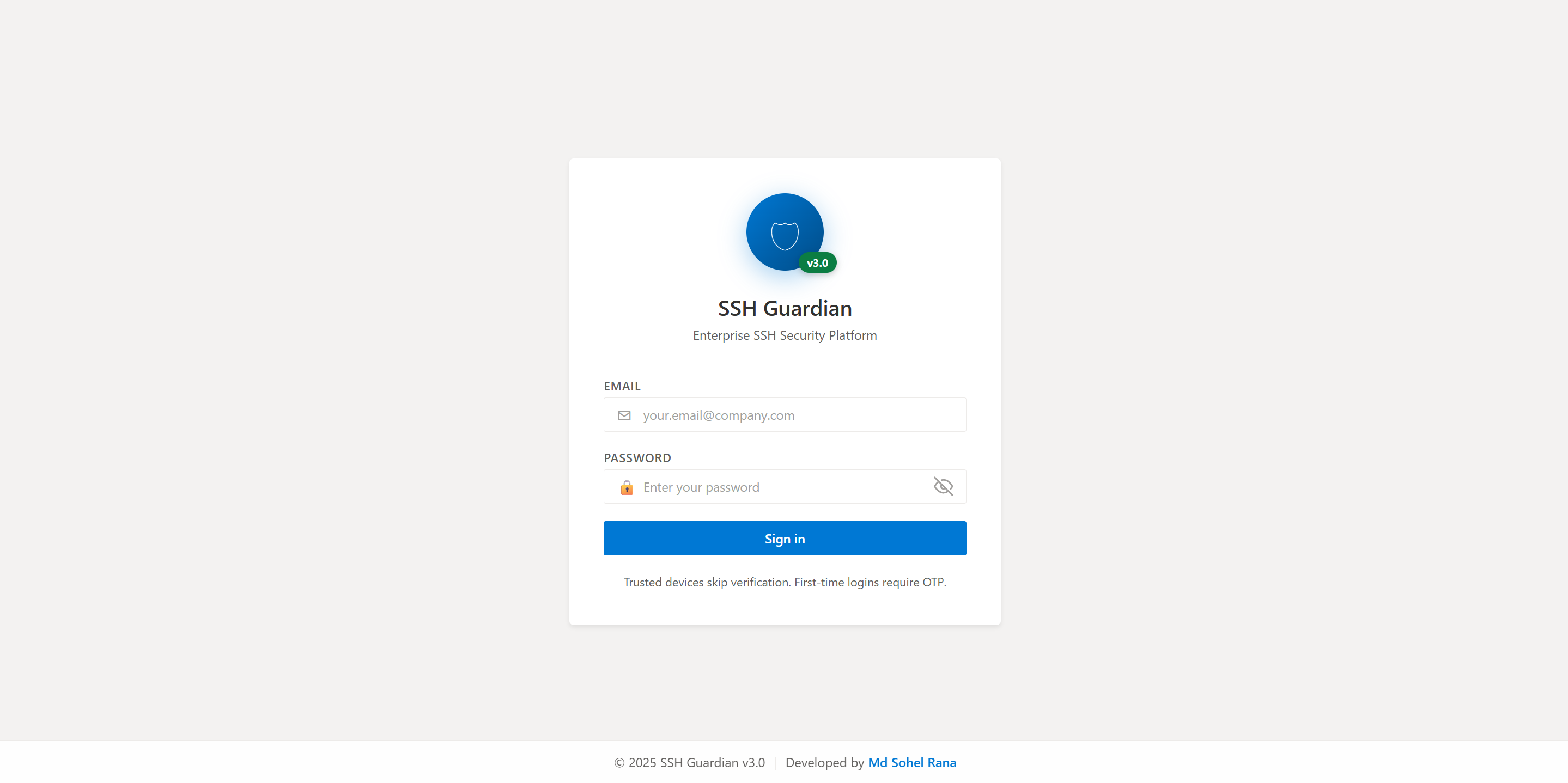

🔐Login Security

Login Security
Two-factor authentication with email OTP

📊Dashboard Overview

Dashboard Overview
Real-time security metrics and threat distribution

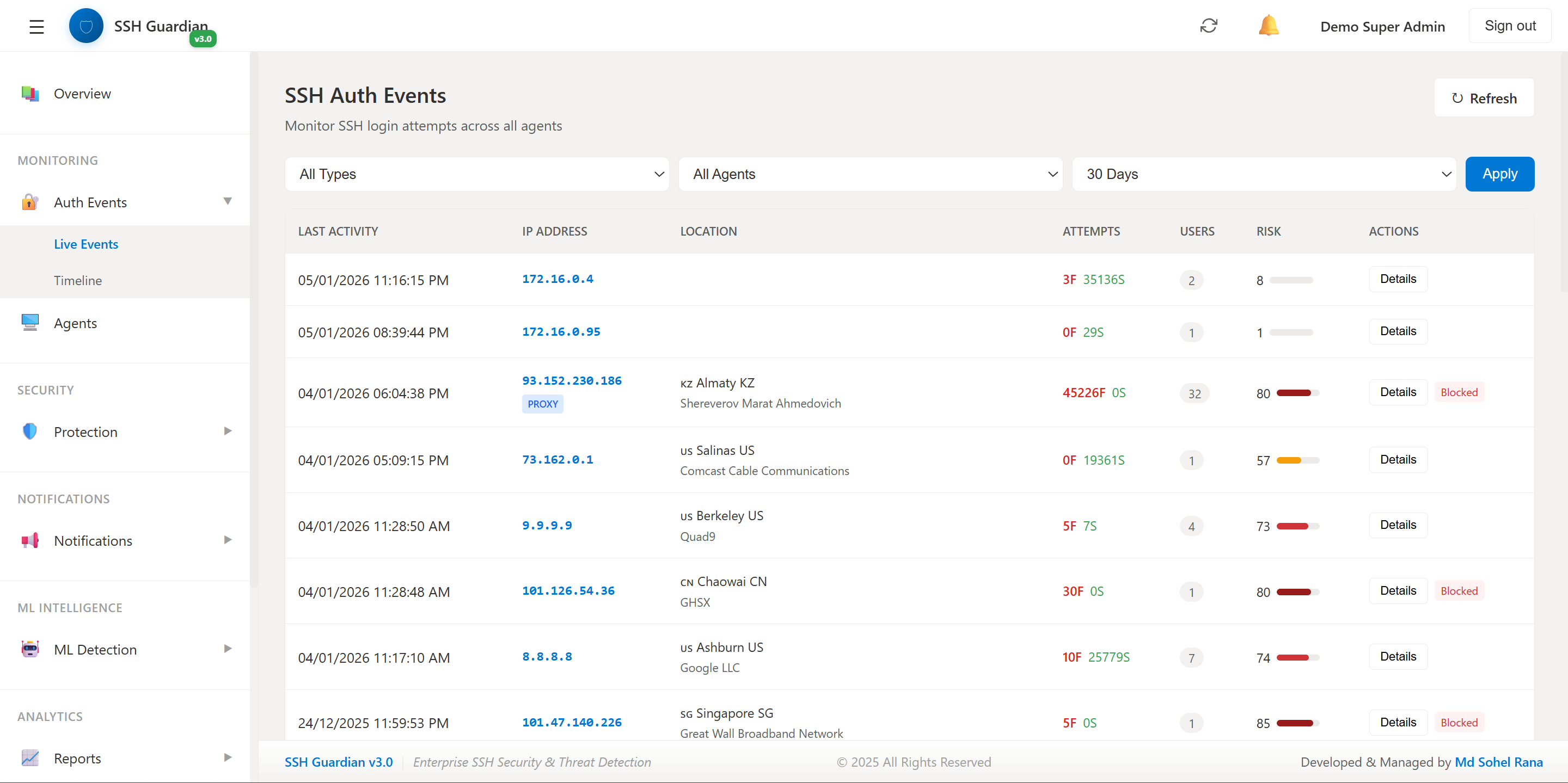

📡Live Events Stream

Live Events Stream
Real-time SSH authentication event monitoring

📈Events Timeline

Events Timeline
Historical event analysis with filtering

🖥️Agent Management

Agent Management
Remote server agent monitoring and status

🔍Threat Intelligence Lookup

Threat Intelligence Lookup
Comprehensive IP analysis with multiple threat feeds

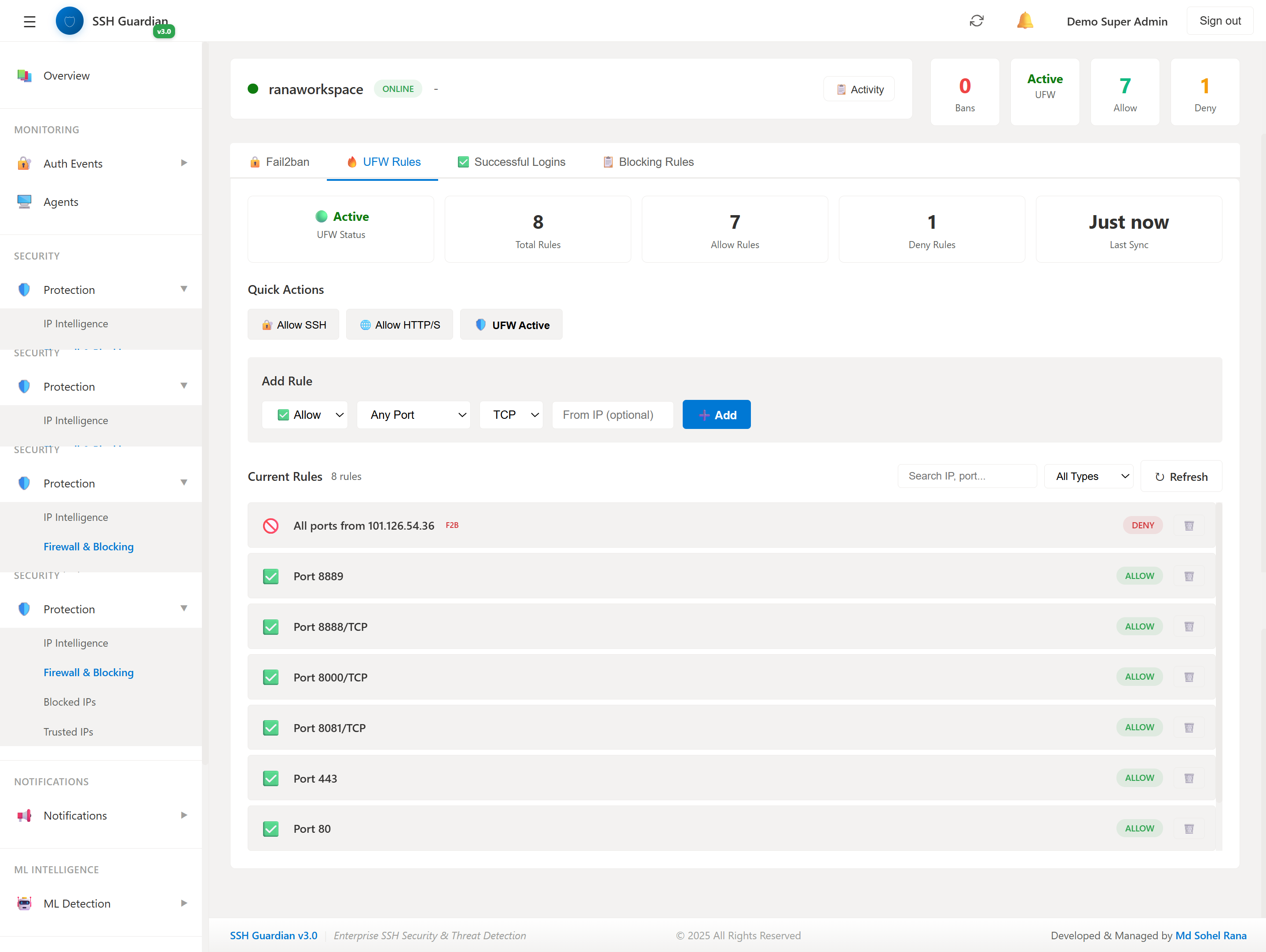

🔥Firewall Management

Firewall Management
Unified firewall control with UFW and Fail2ban

🚫Blocked IPs

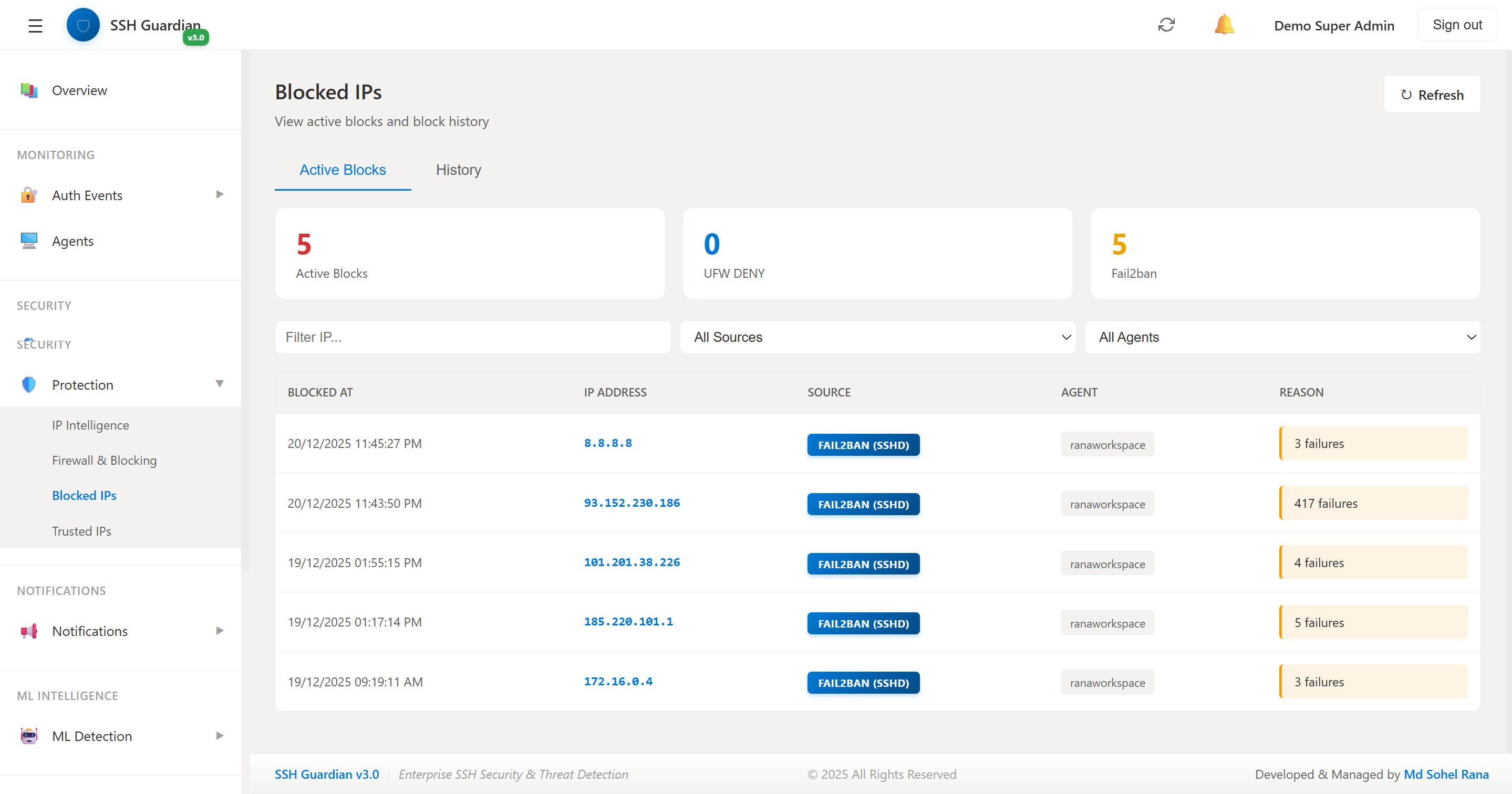

Blocked IPs
Active IP blocks with reason and expiration

📋Blocking Rules

Blocking Rules
Configurable rule-based and ML-driven blocking

✅Trusted IPs

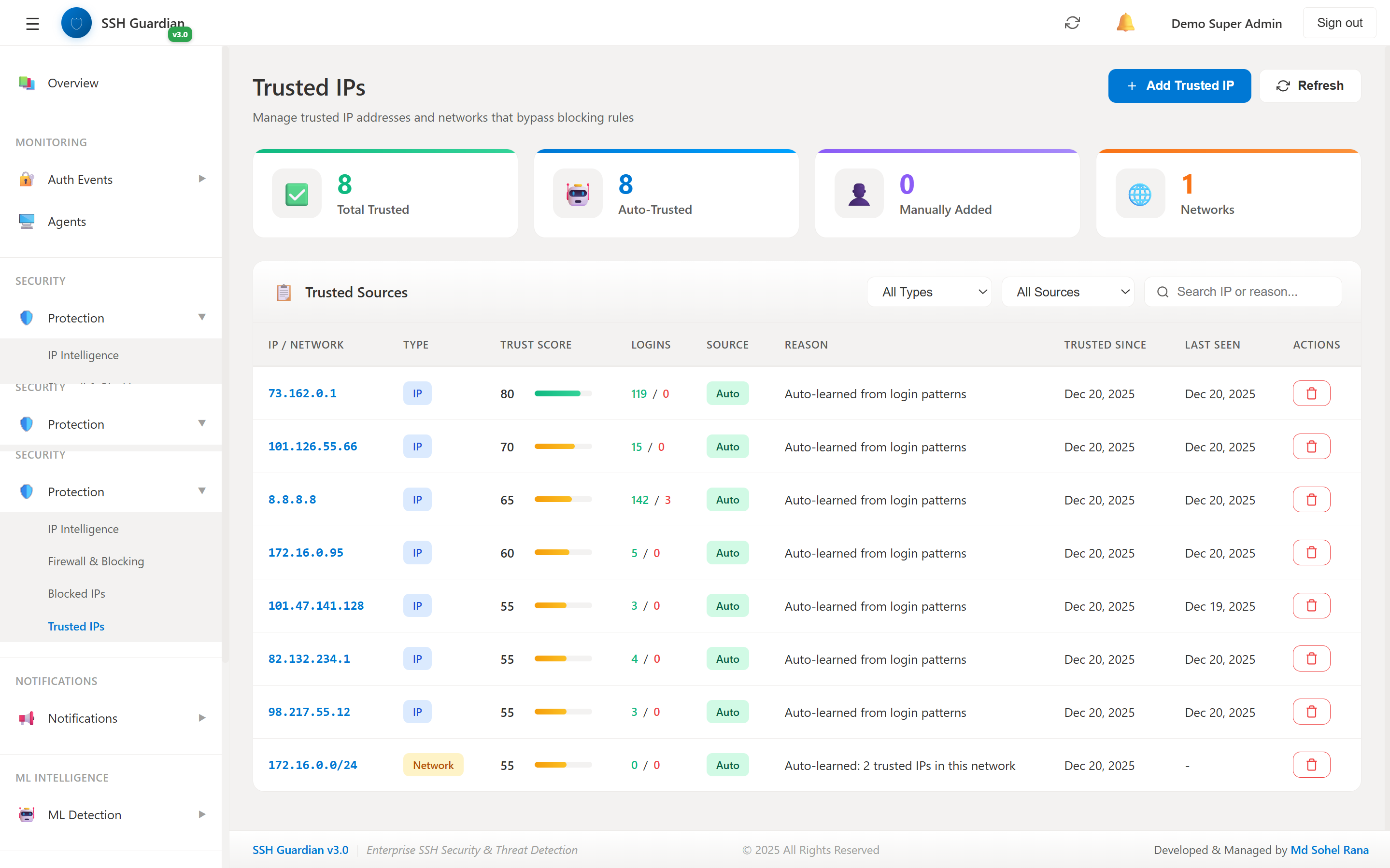

Trusted IPs
Whitelist management to prevent false positives

🤖ML Intelligence Overview

ML Intelligence Overview
Model performance metrics and predictions

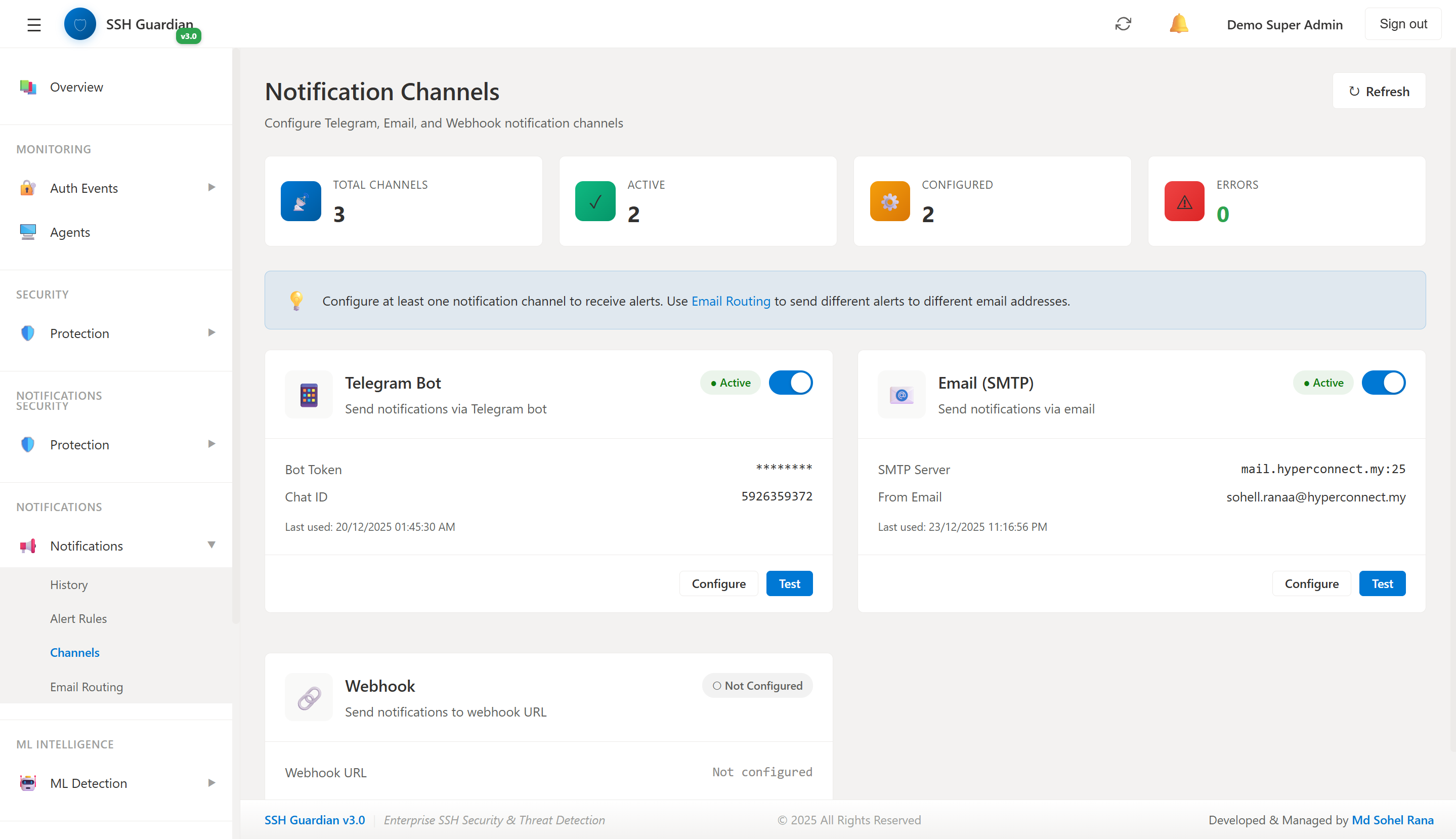

📢Notification Channels

Notification Channels
Multi-channel alert configuration

📱Telegram Alerts

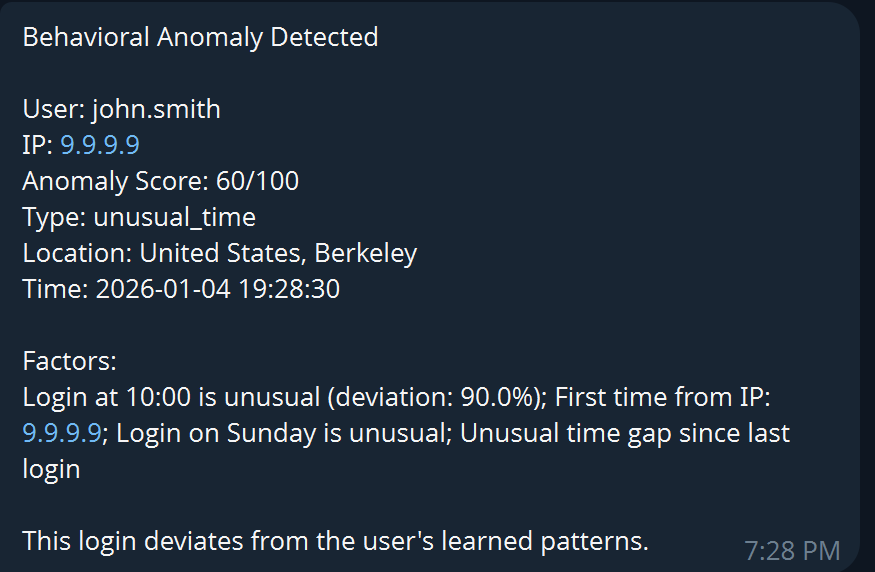

Telegram Alerts
Real-time Telegram bot alerts

🔔Notification Rules

Notification Rules
Customizable alert rules and thresholds

📈Security Trends

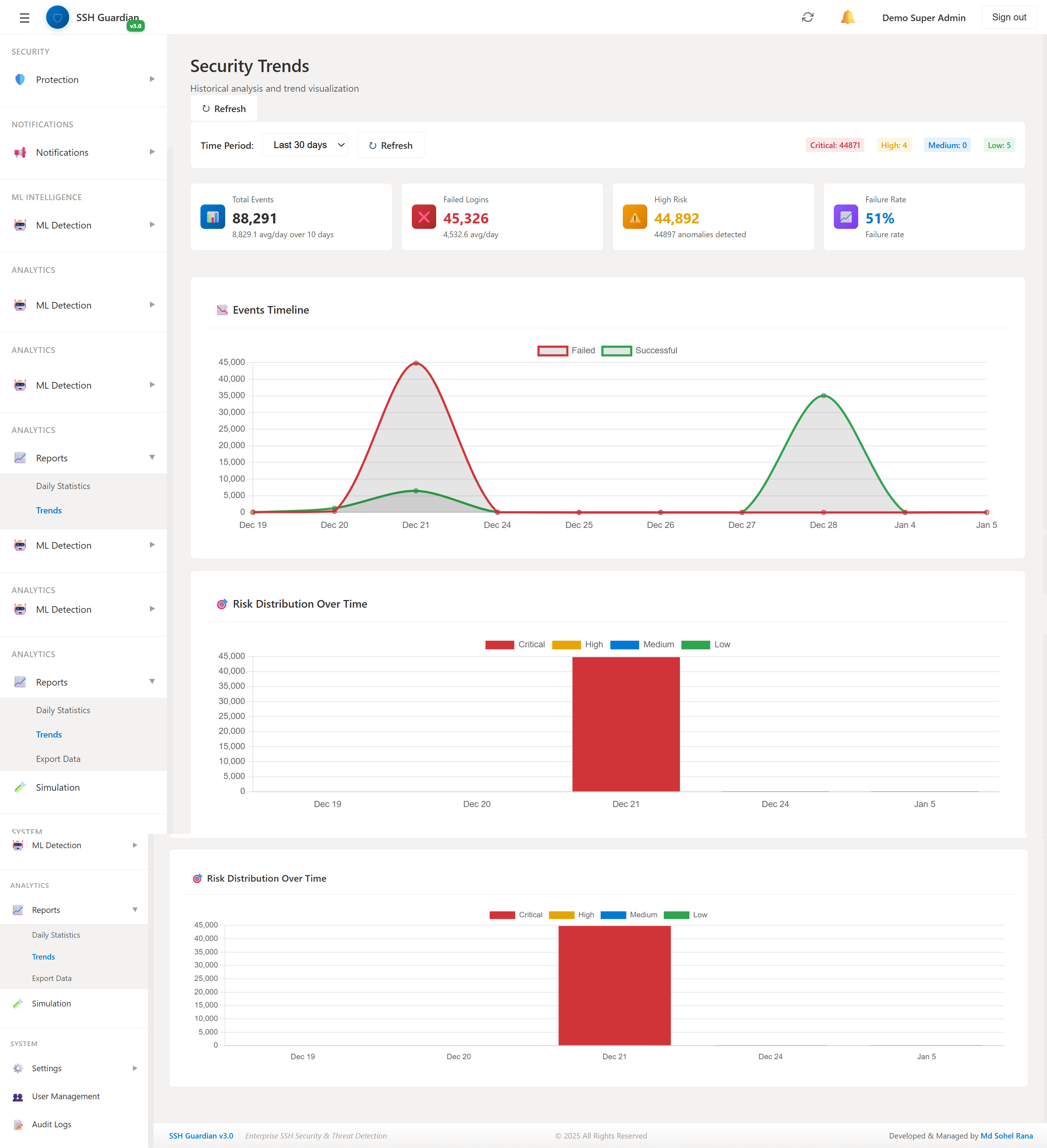

Security Trends
Historical analysis and security trends

📊Daily Reports

Daily Reports
Automated daily security summaries

⚙️System Settings

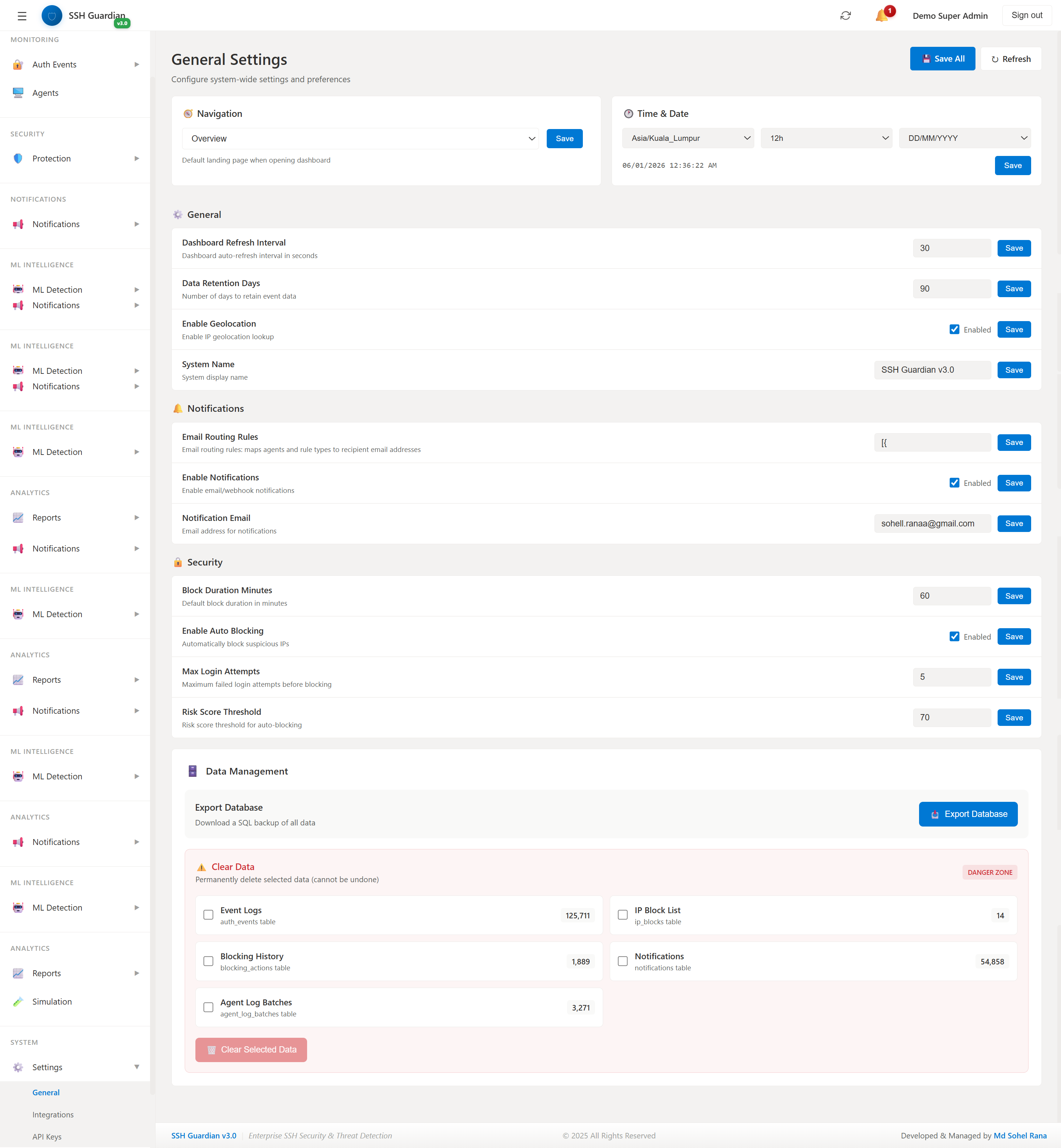

System Settings
System configuration and preferences

🔌API Integrations

API Integrations
External threat intelligence API configuration

👥User Management

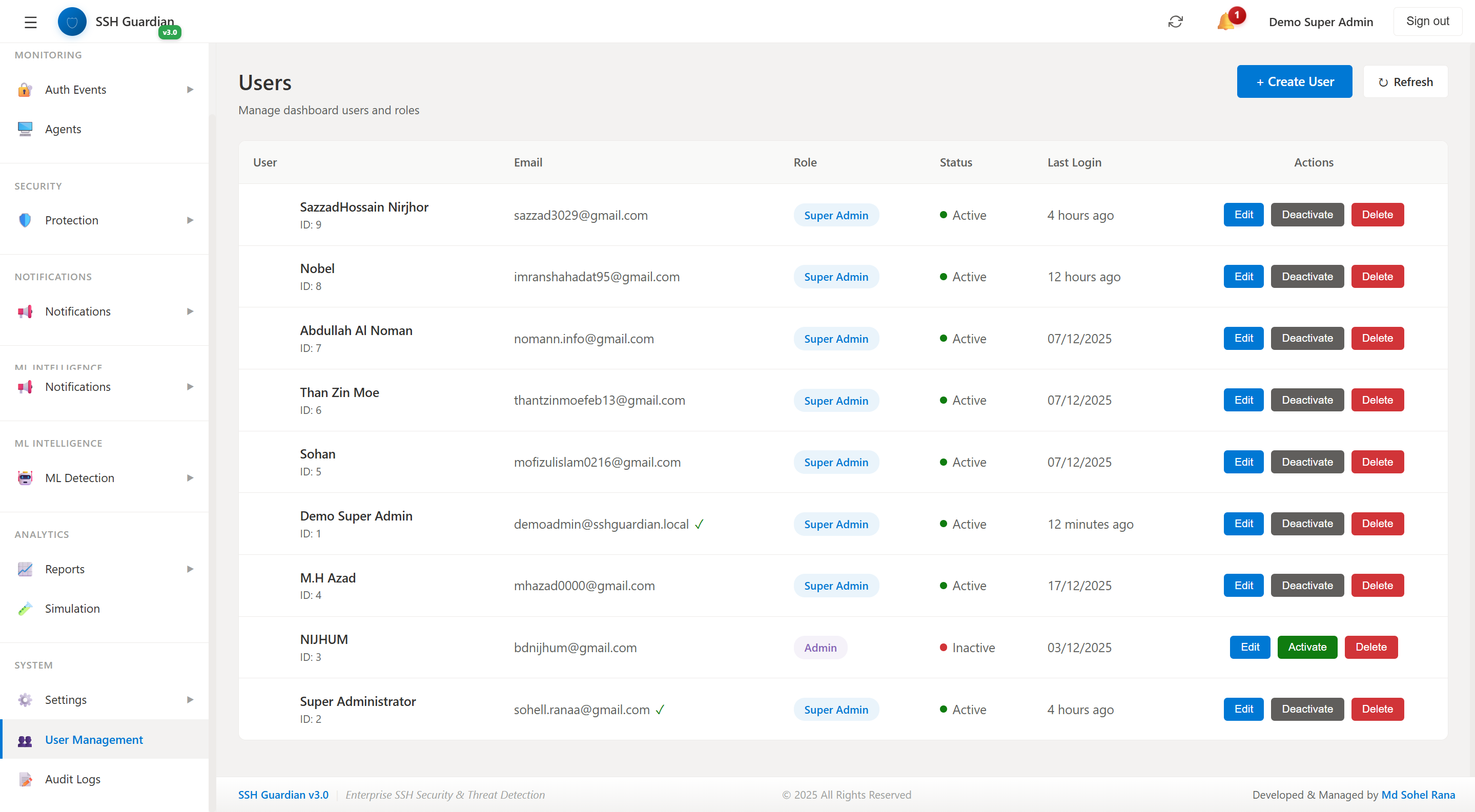

User Management
Role-based access control

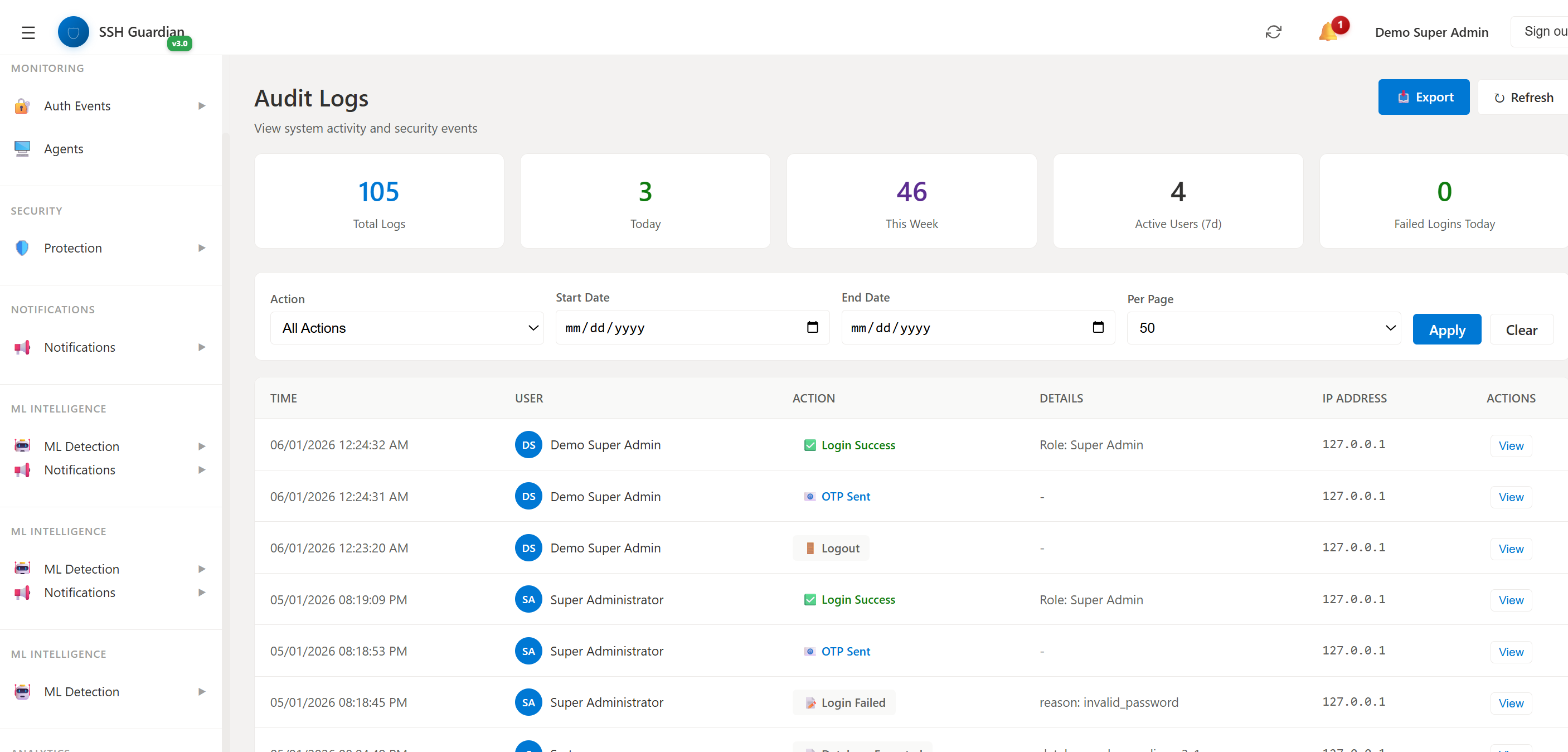

📜Audit Log

Audit Log
Complete activity tracking and compliance

Results & Discussion

Performance Evaluation

📊Detection Performance

96.91
Overall Accuracy
3.1
False Positive Rate
<30
Response Time
500
Events/Second

🎯Attack-Specific Detection

99.2
Brute Force Detection
98.7
Tor-based Attack Detection
97.4
Credential Stuffing Detection

⚔️SSH Guardian vs Fail2ban

Metric Fail2ban SSH Guardian Improvement
Accuracy 78.0% 96.91% +18.91%
False Positives 12.3% 3.1% -9.2%
Detection Latency Threshold only Real-time ML Faster
Threat Intel ✗ 4 APIs New
Dashboard ✗ Full UI New
Behavioral Analysis ✗ 50 features New

💻Resource Utilization

2.3
CPU Usage (avg)
180
RAM Usage
<1
Total Processing
99.9
Uptime

✅Research Questions Answered

  • ✓ RQ1: Random Forest with 50 features achieves 96.91% accuracy with minimal resources
  • ✓ RQ2: Temporal features (failed_attempts_1h, is_night) are most predictive
  • ✓ RQ3: AbuseIPDB integration improves detection by 8.4% for known malicious IPs
  • ✓ RQ4: 18.91% accuracy improvement over Fail2ban baseline

🎯Objectives Achieved

✅
Objective 1
Developed ML-based IDS with 2.3% CPU and 180MB RAM usage
✅
Objective 2
Identified 50 features across 9 categories with importance analysis
✅
Objective 3
Integrated 4 threat intelligence APIs with caching strategy
✅
Objective 4
Documented 18.91% improvement over Fail2ban

Future Work

Roadmap & Open Source

⚠️Current Limitations

🖥️
Single-Server
Currently designed for single central server deployment
🐧
Linux-Only
Agent supports Linux only, no Windows/macOS
🔄
Manual Retraining
Model updates require manual intervention
🌍
English-Only
Dashboard and documentation in English

📦Open Source Release

📜
Apache 2.0 License
Enterprise-friendly with patent protection
🔧
GitLab Repository
Full source code and documentation
🤝
Community
Open to contributions and feedback

⚖️License Declaration

Apache License 2.0

  • Free to Use: Commercial and personal use permitted
  • Modify & Distribute: Full rights to modify and redistribute
  • Patent Protection: Express grant of patent rights from contributors
  • No Trademark Rights: Does not grant permission to use project trademarks

Why Apache 2.0?

  • Enterprise-Friendly: Compatible with corporate legal requirements
  • SME Accessible: No licensing fees or restrictions for small businesses
  • Community Growth: Encourages contributions while protecting contributors
  • Industry Standard: Used by Kubernetes, TensorFlow, Apache projects

🗺️Technical Roadmap 2026

🐳
Q1: Docker
Containerized deployment
🌐
Q2: Multi-Server
Distributed architecture
🪟
Q3: Windows Agent
Cross-platform support
📱
Q4: Mobile App
iOS/Android dashboard

🧠Future ML Improvements

  • Deep Learning: LSTM networks for sequence-based attack detection
  • Online Learning: Continuous model updates from new data
  • Adversarial Robustness: Defense against ML-aware attackers
  • Explainable AI: SHAP values for prediction transparency
  • Transfer Learning: Pre-trained models for faster deployment

Conclusion

Summary & Contributions

🏆Key Contributions

🤖
Hybrid Detection
Three-layer architecture combining rules, ML, and threat intelligence
📊
Feature Engineering
50 engineered features across 9 categories for SSH analysis
🎯
SME Focus
Enterprise-grade security accessible to small businesses
📖
Open Source
Full codebase available under Apache 2.0 license
📈
Proven Results
96.91% accuracy with 18.91% improvement over baseline
🛠️
Production Ready
18,000+ lines of code, 47-table database, complete dashboard

📝Conclusion

  • Problem: SMEs lack affordable, effective SSH security solutions
  • Solution: SSH Guardian - ML-powered, open-source, SME-friendly
  • Results: 96.91% accuracy, <3% false positives, <30s response time
  • Impact: Enterprise-grade security accessible to all organizations
  • Future: Open source release, community contributions, continuous improvement

🙏Acknowledgments

  • Supervisor: Dr. Kuruvikulam Chandrasekaran Arun for guidance and support
  • Co-Supervisor: Ts. Dr. Manimegalai A/P Rajenderan
  • Institution: Asia Pacific University of Technology & Innovation
  • Open Source Community: Python, Flask, Scikit-learn contributors
  • Family & Friends: For continuous encouragement and support

Thank You

Questions & Discussion

Email sohell.ranaa@gmail.com
GitLab gitlab.com/sohell.ranaa/ssh-guardian
Demo sshg-app.rpu.solutions
← → Navigate F Fullscreen M Menu A Auto-play
👆 Swipe left/right to navigate
